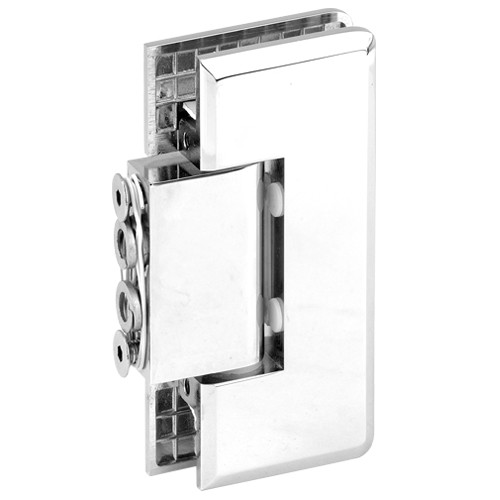

Beveled Economy Shower Hinge without Back Plate

Beveled Economy Shower Hinge without Back Plate

Product Item : SH200-90-WT-CP
Category： 90 Degree Glass Hinge
Material: Brass

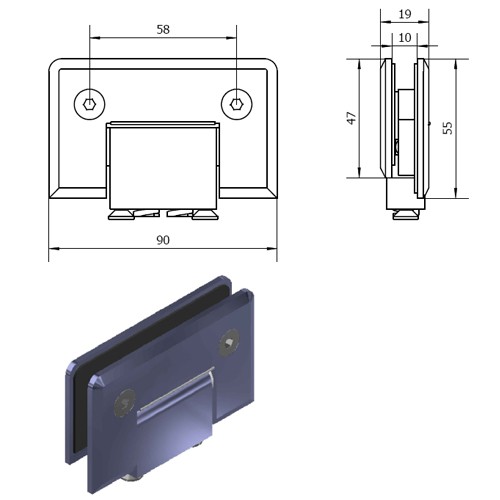

Size: 90X55mm
Glass Door Thickness: 8-12mm
Service: OEM/ODM
Product description：
INQUIRY EMAIL

◆Spring Self-Centering when within 25 degree of the Closed Position

◆Preset 90 degree pivot pin for normal door closing operation, available revsersible 5 degree pivot pin or custom pivot pin

◆50000 cycles open/close, 3 Year Warranty

◆Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 31 1/2" (800 mm).

◆Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 36" (914 mm).

◆Suitable Glass: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these hinges.
