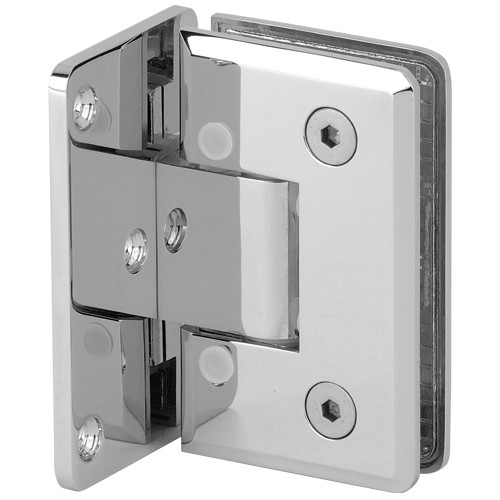

Beveled Edge Brass Adjust Glass Shower Door Hinge

Beveled Edge Brass Adjust Glass Shower Door Hinge

Product Item : SH260-90L-WTG-AD
Category： 90 Degree Shower Glass Hinge
Material: Brass

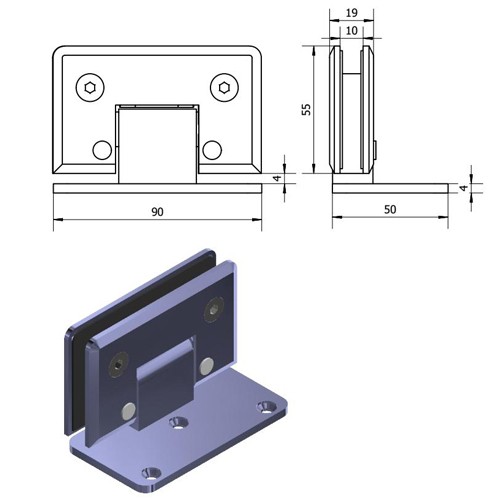

Size: 90X55mm
Type: spring self-centering, beveled, economy waffle plate
Glass Door Thickness: 8-12mm
Product description：
INQUIRY EMAIL

◆Spring Self-Centering when within 15 degree of the Closed Position

◆Can be adjusted to any angle up to 90 DEG without taking the door down

◆50000 cycles open/close, 3 Year Warranty

◆Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

◆Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

◆Suitable Glass: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these
