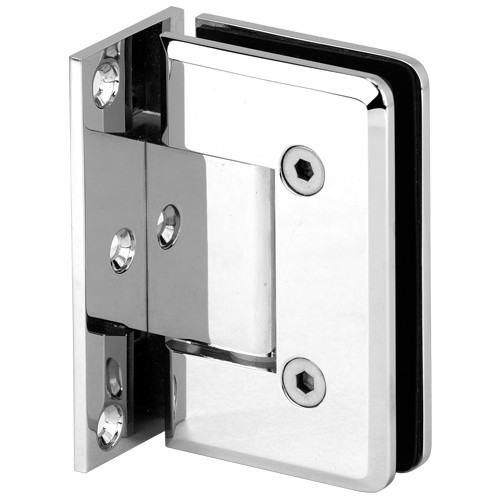

Glass to Wall Beveled Edge Shower Hinge

Product Item : SH250-90LS-WTG
Category： SH250 Standard Shower Hinge
Material: Brass

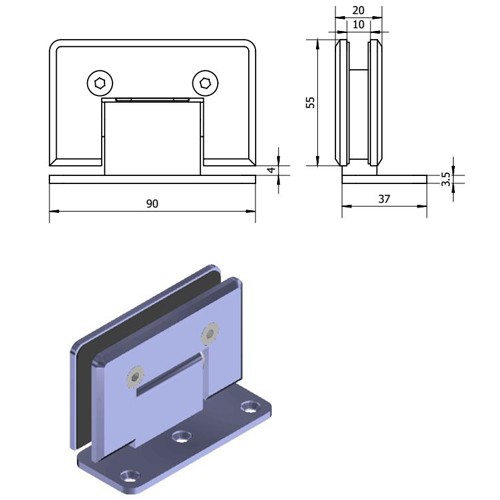

Size: 90X55mm
Type: spring self-centering, beveled, solid flat plate
Available finishes: polish chrome, brush nickel, Oil rubbed bronze (ORB), polish brass, satin brass, gold, PVD, antique brass, antique copper, brush bronze, matt black, satin chrome, pearl chrome, pew
Product description：
INQUIRY EMAIL

◆Spring Self-Centering when within 25 degree of the Closed Position

◆Preset 90 degree pivot pin for normal door closing operation, available revsersible 5 degree pivot pin or custom pivot pin

◆50000 cycles open/close, 3 Year Warranty

◆Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

◆Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

◆Suitable Glass: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these hinges.
