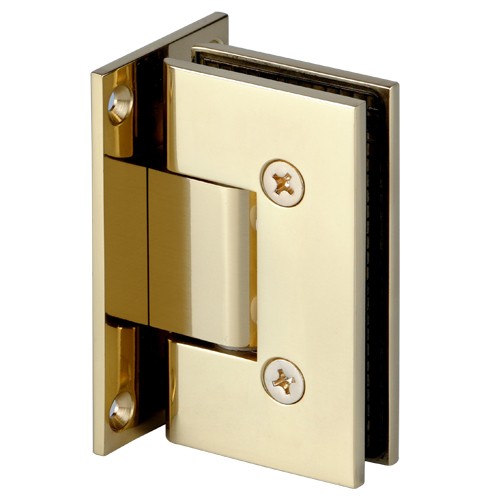

Heavy Duty Shower Door Hinge
- Product Item : SH130-90T-WTG-HD
- Category:
SH130 Heavy Duty Shower Hinge Waffle Plate
- Material: Brass

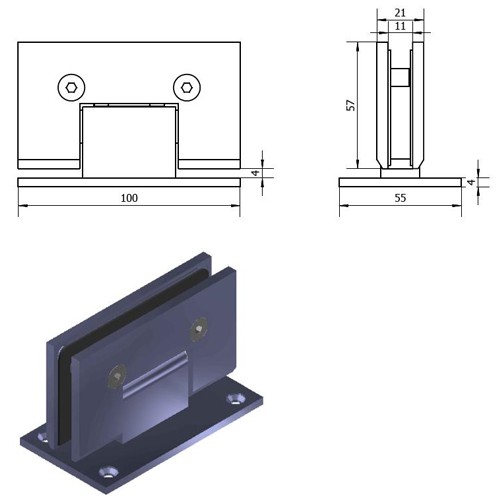

- Size: 100X57mm
- Type: spring self-centering, sqaure, heavy duty waffle plate,hold heavier glass than standard hinge
- Available finishes: polish chrome, brush nickel, Oil rubbed bronze (ORB), polish brass, satin brass, gold, PVD, antique brass, antique copper, brush bronze, matt black, satin chrome, pearl chrome, pew
- Product description:
-
-
◆Spring Self-Centering when within 15 degree of the Closed Position
◆Preset 90 degree pivot pin for normal door closing operation, available revsersible 5 degree pivot pin or custom pivot pin
◆50000 cycles open/close, 3 Year Warranty
◆Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
◆Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
◆Suitable Glass: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these
