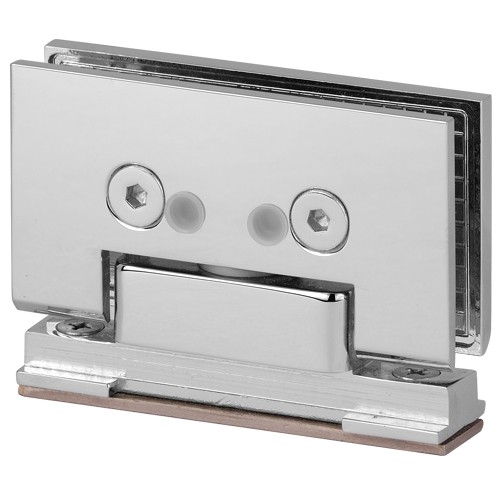

Square Adjustable Shower Hinge

Product Item : SH160-360TP-AD
Category： ● SH160 Adjustable Shower Hinge
Material: Brass

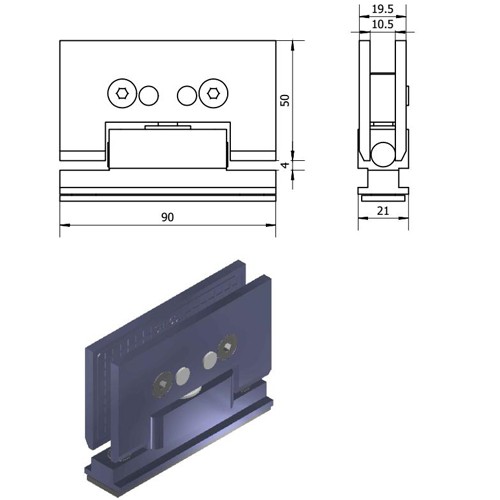

Size: 90X55mm
Top to Bottom Mount Shower Hinge
Type: spring self-centering, square, solid waffle plate
Product description：
INQUIRY EMAIL

Available Finishes:

- Polished Chrome

- Brushed Nickel

- Oil Rubbed Bronze (ORB)

- Polished Brass

- Satin Brass, Gold, PVD

- Antique Brass

- Antique Copper

- Brushed bronze

- Matt Black

- Satin Chrome

- Pearl Chrome

- Pewter

- Powder Coated White

- Brushed Bronze

◆Spring Self-Centering when within 25 degree of the Closed Position

◆Preset 90 degree pivot pin for normal door closing operation, available reversible 5 degree pivot pin or custom pivot pin

◆50000 cycles open/close, 3 Year Warranty

◆Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

◆Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

◆Suitable Glass: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these hinges.
