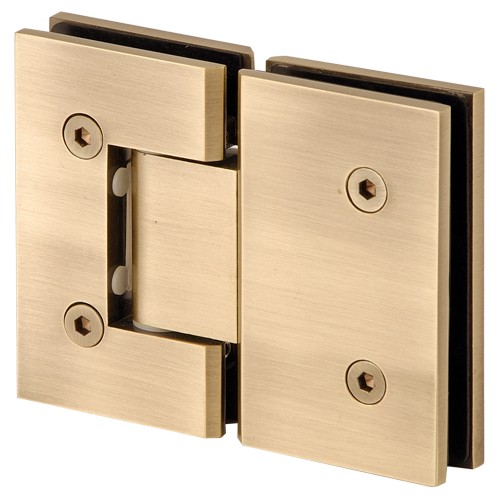

Standard Shower Hinge 180 degree

Product Item : SH150-180-GTG
Category： 180 Degree shower Door Hinges
Material: Brass
Glass Door Thickness: 8-12mm
Feature: Pass 100,000 Cycle Testing, Pass 48 Hours Salt Spray Test
Service: OEM/ODM
Product description：
INQUIRY EMAIL

◆Spring Self-Centering when within 25 degree of the Closed Position

◆Preset 90 degree pivot pin for normal door closing operation, available revsersible 5 degree pivot pin or custom pivot pin

◆50000 cycles open/close, 3 Year Warranty

◆Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

◆Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

◆Suitable Glass: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these hinges.

PREVIOUS：135 Degree Bathroom Standard Shower Hinge NEXT：90 Degree Square Standard Shower Hinge
