90 degree Adjustable Shower Hinge Wall Mount

90 degree Adjustable Shower Hinge Wall Mount

Product Item : SH160-90L-WTG-AD
Category： Adjustable Brass Shower Hinge
Material: Brass

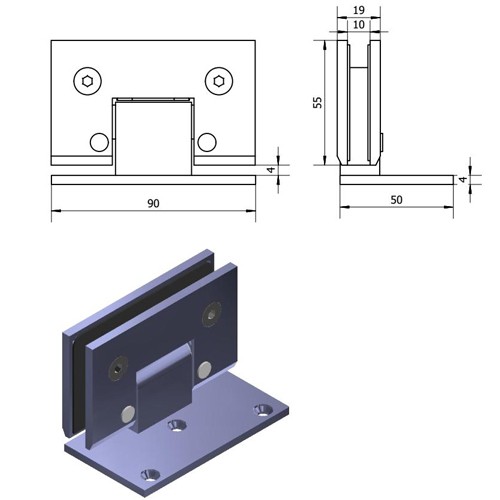

Size: 90X55mm
Type: spring self-centering, square, solid waffle plate
Available finishes: polish chrome, brush nickel, Oil rubbed bronze (ORB), polish brass, satin brass, gold, PVD, antique brass, antique copper, brush bronze, matt black, satin chrome, pearl chrome, pew
Product description：90 degree Adjustable Shower Hinge Wall Mount
INQUIRY EMAIL

◆Spring Self-Centering when within 15 degree of the Closed Position

◆Can be adjusted to any angle up to 90 DEG without taking the door down

◆50000 cycles open/close, 3 Year Warranty

◆Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

◆Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

◆Suitable Glass: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these

Tags: 90 degree Adjustable Shower Hinge Wall Mount
