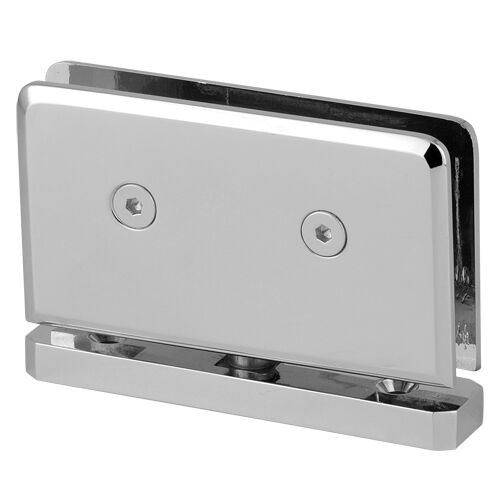

360 Degree Shower Glass Door Pivot Hinge,Beveled Heavy Duty

360 Degree Shower Glass Door Pivot Hinge,Beveled Heavy Duty

Product Item : SH231-360
Category： 360 Degree Brass Hinge
Material: Brass

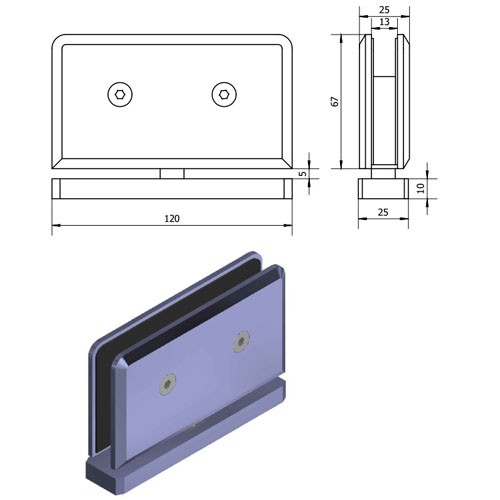

Size: 120X67mm

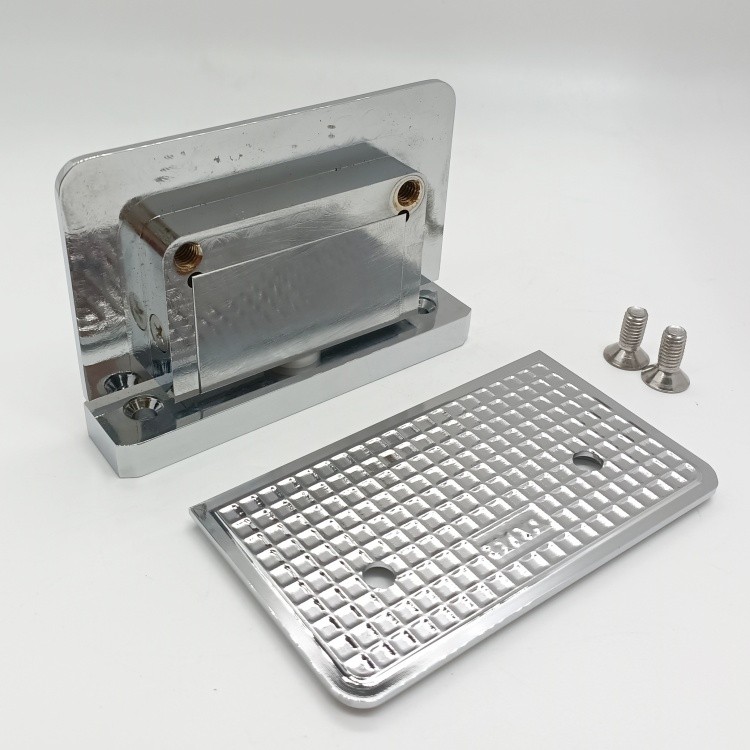

Type: spring self-centering, beveled, heavy duty waffle plate,hold heavier glass than standard hinge
Glass Door Thickness: 8-12mm
Product description：360 Degree Shower Glass Door Pivot Hinge,Beveled Heavy Duty
INQUIRY EMAIL

◆Spring Self-Centering when within 15 degree of the Closed Position

◆360 degree rotation for normal door closing, available revsersible 5 degree pivot pin or custom pivot pin

◆50000 cycles open/close, 3 Year Warranty

◆Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

◆Suitable Glass: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these hinges.
