Bathroom Heavy Duty shower door hinges brass

Bathroom Heavy Duty shower door hinges brass

Product Item : SH130-90LR-WTG-HD
Category： 90 Degree Glass Hinges
Material: Brass

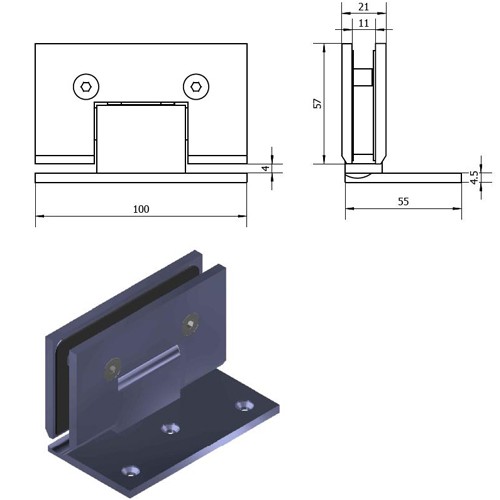

Size: 100X57mm
Type: spring self-centering, sqaure, heavy duty waffle plate,hold heavier glass than standard hinge
Glass Door Thickness: 8-12mm
Product description：Bathroom Heavy Duty shower door hinges brass
INQUIRY EMAIL

◆Spring Self-Centering when within 15 degree of the Closed Position

◆Preset 90 degree pivot pin for normal door closing operation, available revsersible 5 degree pivot pin or custom pivot pin

◆50000 cycles open/close, 3 Year Warranty
◆Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
◆Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
◆Suitable Glass: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these

Tags: Bathroom Heavy Duty shower door hinges brass
