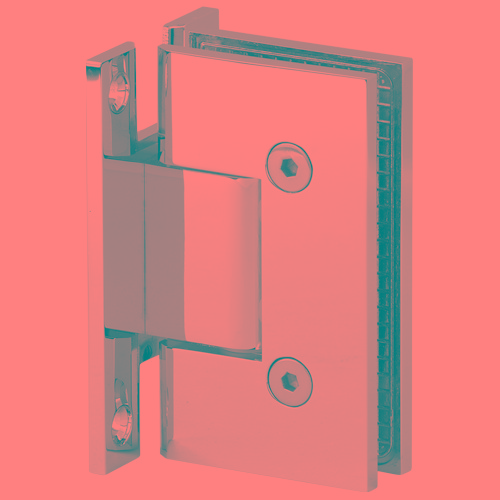

Glass pivot hinge 90 degree sliding glass door hinge

Glass pivot hinge 90 degree sliding glass door hinge

Product Item : SH130-90H-WTG-HD
Category： 90 Degree Glass Hinges
Material: Brass

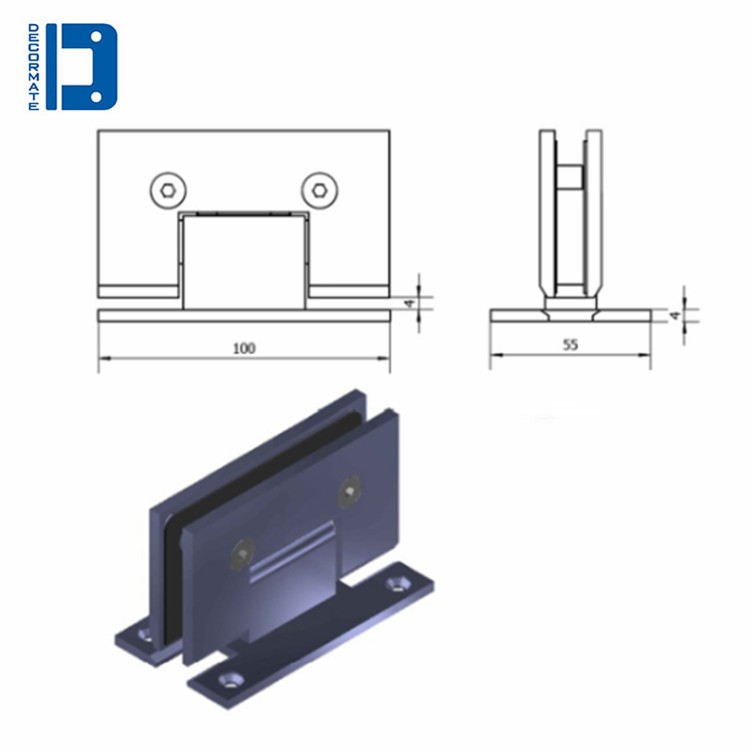

Size: 100X57mm
Type: spring self-centering, sqaure, heavy duty waffle plate,hold heavier glass than standard hinge
Available finishes: polish chrome, brush nickel, Oil rubbed bronze (ORB), polish brass, satin brass, gold, PVD, antique brass, antique copper, brush bronze, matt black, satin chrome, pearl chrome, pew
Product description：Glass pivot hinge 90 degree sliding glass door hinge
INQUIRY EMAIL

◆Spring Self-Centering when within 15 degree of the Closed Position
◆Preset 90 degree pivot pin for normal door closing operation, available revsersible 5 degree pivot pin or custom pivot pin

◆50000 cycles open/close, 3 Year Warranty
◆Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
◆Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
◆Suitable Glass: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these

Tags: Glass pivot hinge 90 degree sliding glass door hinge
