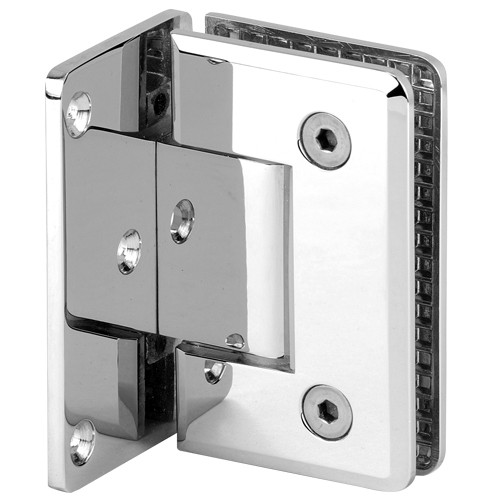

Brass 90 Degree Glass Shower Door Hinge

Product Item : SH200-90L-WTG
Category： SH200 Economy Shower Hinge
Material: Brass

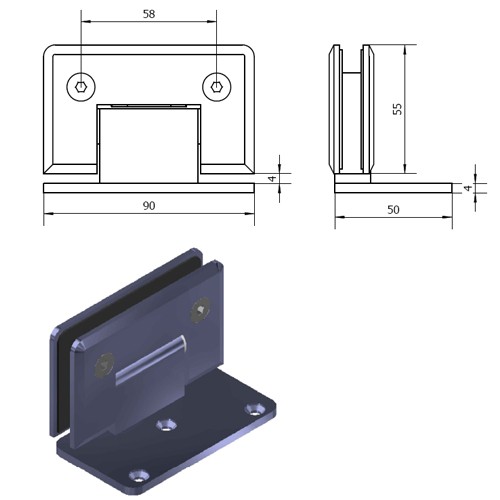

Size: 90X55mm
Type: spring self-centering, beveled, waffle plate
Available finishes: polish chrome, brush nickel, Oil rubbed bronze (ORB), polish brass, satin brass, gold, PVD, antique brass, antique copper, brush bronze, matt black, satin chrome, pearl chrome, pew
Product description：
INQUIRY EMAIL

◆Spring Self-Centering when within 25 degree of the Closed Position

◆Preset 90 degree pivot pin for normal door closing operation, available revsersible 5 degree pivot pin or custom pivot pin

◆50000 cycles open/close, 3 Year Warranty

◆Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 31 1/2" (800 mm).

◆Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 36" (914 mm).

◆Suitable Glass: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass, It is RECOMMENDED that only Tempered Safety Glass is used with these hinges.
